Product Description

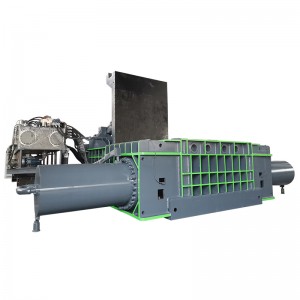

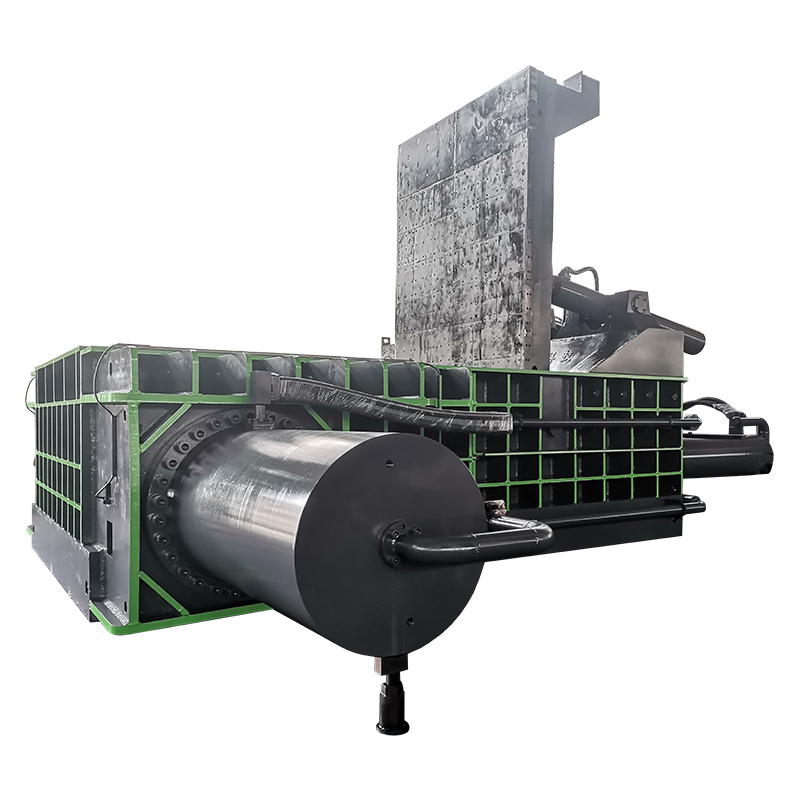

Y81 series hydraulic metal baler can squeeze all kinds of metal scraps into cuboid, cylinder, octagon and so on. This machine has high working efficiency, and the compressed bales are tight and regular. It can not only reduce transportation and smelting costs, but also increase the speed of furnace operation. This machine is suitable for steel mills, recycling and processing industries, and non-ferrous and ferrous metal smelting industries.
Feature of the hydraulic baler
1. No fang bolts needed for installation, diesel engine can be used as power when electric power is unavailable.
2. Hydraulic drive, compact design, great sealing.
3. Customized press box size and bale size.
4. Both manual valve operation and PLC automatic controlling operation type are available.
5. Strong anti interference, high automatic degree, simple operation.
Product Details
Product Name: | Hydraulic Metal Baler |
Bale discharging mode: | Manual pick-up |
Operation type: | Optional Manual or PLC control |
Material / Metal Processed: | Brass / Copper, ALLOY, Aluminum, Carbon Steel, Stainless Steel |
Application: | Scrap Metal Recycling |
Power type: | Hydraulic |
Key Selling Points: | Easy to Operate or Long Service Life |
Applicable Industries: | Steel mills, recycling and processing industries |
Technical Parameter
Model |
Main Cyl.Force |
Press Box Size |
Bale Size |
Bale Weight |
Y81-500 |
500 |
3500*3000*1200 |
600*600/700*700 |
900-1500 |
Y81-630 |
630 |
3500/4000*3000*1300 |
600*600/700*700 |
1100-1700 |
Y81-800 |
800 |
3500/4000*3000*1300 |
600*600/700*700 |
1200*1800 |
Y81-1000 |
1000 |
3500/4000*3000*1300 |
600*600/700*700 |
1300*1900 |
The parameters in the above table are for reference only.
