Product Description

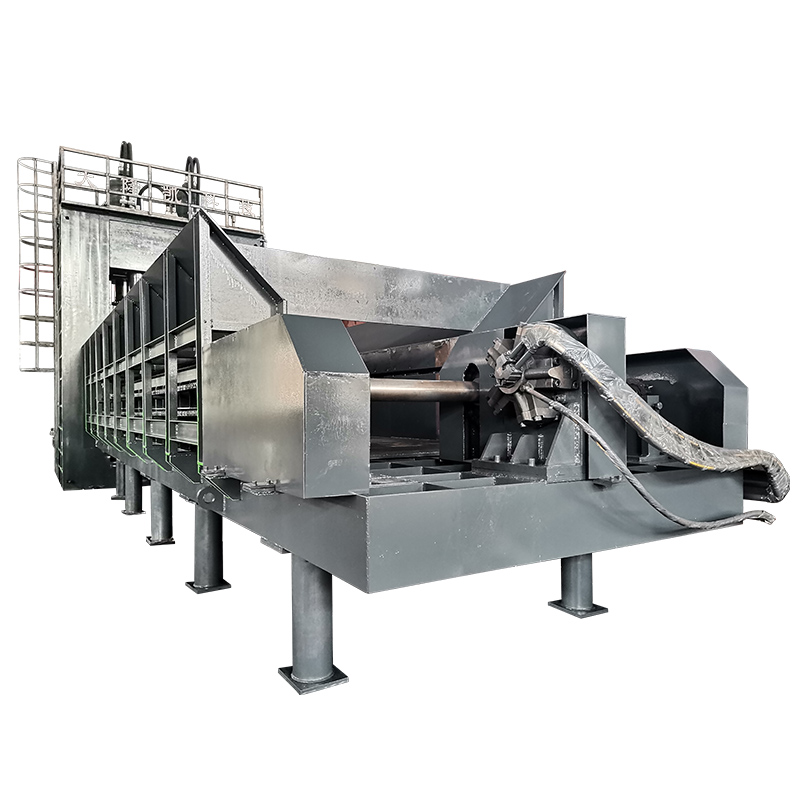

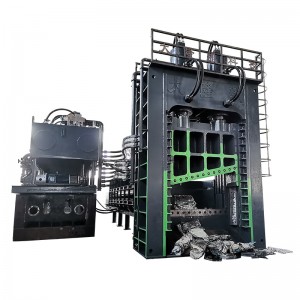

Q91Y-1250 heavy-duty shearing machine can cut all kinds of scrap metal and steel. Q91Y series heavy metal scrap shears are suitable for steel plants, precision casting industries and non-ferrous smelting industries. The cutting range is: round steel φ120mm, square steel 110×110 (mm), steel plate 90×500 (mm).
Features of the gantry shear
1. Reduce costs: instead of labor, save time and effort;
2. Automation: automatic feeding, stable performance.
3. Stable work: using electro-hydraulic control system, low noise.
Technical Parameters
| Model | Max.Cutting Force(ton) | Press Box Size(mm) | Blade Length(mm) | Production Rate(t/h) | Cutting Frequency(times/min) | Power(kw) |
| Q91Y-400 | 400 | 6300*1300*500 | 1400 | 4-7 | 2-4 | 90 |
| Q91Y-500 | 500 | 6000*1500*700 | 1600 | 5-8 | 2-4 | 110 |
| Q91Y-630 | 630 | 8000*1700*1200 | 1800 | 12-15 | 2-4 | 150 |
| Q91Y-800 | 800 | 8000*1900*1200 | 2000 | 15-25 | 2-4 | 225 |
| Q91Y-1000 | 1000 | 8000*2000*1200 | 2500/2100 | 18-25 | 2-4 | 170 |
| Q91Y-1250 | 1250 | 8000*2400*1200 | 2500 | 20-28 | 2-4 | 300 |
The parameters in the table are for reference only.
