Product Description

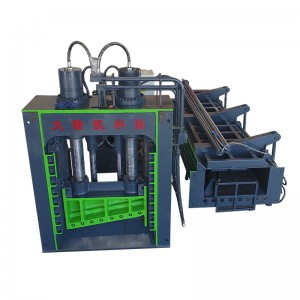

Q91Y series heavy hydraulic shearing machine is a medium-sized scrap steel shearing machine with a wide range of cutting materials and high processing capacity. Its powerful processing capacity is favored by scrap steel processing enterprises. The gantry shears use sophisticated materials and complex manufacturing processes, which have strict requirements for the machining capabilities of the factory and the technical level of the workers.
Product advantages
1.The adoption of upper compression and two side compression of the whole shape and sectional feeding mode of scrap, the design of wide material box, so the applicability of scrap raw materials is good, and the compactness after shearing is high.
2.The opening area of the material box is large, which is suitable for machining materials, loose heavy waste, light and thin waste steel, automobile shell, large irregular light steel structure, steel pipe, steel plate, channel steel, I-beam, steel bar and other profiles cutting, easy to put into the material box, and fully enlarge the utilization rate of the equipment.
3.It adopts PLC automatic control touch screen type control panel automatic integrated control and multi angle whole process monitoring system, which is convenient for user control and whole process tracking of equipment use.
Technical parameters:
|
Model |
Max.Cutting Force(ton) |
Press Box Size(mm) |
Blade Length(mm) |
Cutting Frequency (times/min) |
Power (KW) |
|
Q91Y-400 |
400 |
6000*1300*500 |
1400 |
2-4 |
90 |
|
Q91Y-500 |
500 |
6000*1500*700 |
1600 |
2-4 |
110 |
|
Q91Y-630 |
630 |
8000*1700*1200 |
1800 |
2-4 |
150 |
|
Q91Y-800 |
800 |
8000*1900*1200 |
2000 |
2-4 |
225 |
|
Q91Y-1000 |
1000 |
8000*2000*1200 |
2500/2100 |
2-4 |
270 |
|
Q91Y-1250 |
1250 |
8000*2400*1200 |
2500 |
2-4 |
300 |
