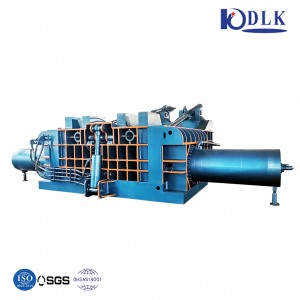

Y81QF-800 Heavy Scrap Metal Hydraulic Baling Press Recycling Machine


  • Y81QF-800 Heavy Scrap Metal Hydraulic Baling Press Recycling Machine

Details

Tags

Introduction of the metal baler

This is a 800 ton hydraulic scrap metal baler with automatic forward turning device. Conventional models with front-turning devices are generally small and medium-sized balers. This 800-ton scrap metal baler is a medium-to-large baler, and it is generally not equipped with a front-turning device, but we can customize design and production according to customer needs. Our Y81 series hydraulic scrap metal baler adopts hydraulic transmission, PLC automatic control system, strong anti-interference ability, low failure rate, with display screen operation interface, which can be adjusted by the operator at any time, convenient, fast, and easy to understand. It can also be equipped with a remote infrared remote control for long-distance control. This scrap metal briquetting machine is ideal for steel mills and scrap metal recycling plants.

Technical Parameters

1

Main oil cylinder

Model

YG640/460

Qty.

2pc

Normal force

6300KN

Stroke

1220mm

2

Side pressure cylinder

Model

YG400/280

Qty.

2pc

Normal force

3150kN*2

Stroke

2870mm

3

Door cover cylinder

Model

YG280/200

Qty.

2pc

Normal force

1600kN*2

Stroke

2150mm

4

Hydraulic system working pressure

≤25MPa

5

Size of feed box

3500*3000*1300 mm

6

Size of bale

700*700 mm

7

Fuel tank capacity

5500L

8

Total equipment power

143.5kW

9

Operation method

Hand-in-one, remote control operation

The parameters in the above table are for reference only.

Application

This series of metal balers are used to extrude various metal scraps (chips, shavings, scrap steel, scrap aluminum, scrap copper, scrap iron, scrap stainless steel, etc.) into qualified materials of various shapes such as cubes, cylinders, and octagons. It is suitable for scrap processing and distribution centers (bases), scrap car dismantling and remanufacturing enterprises, steel and non-ferrous metal industries.

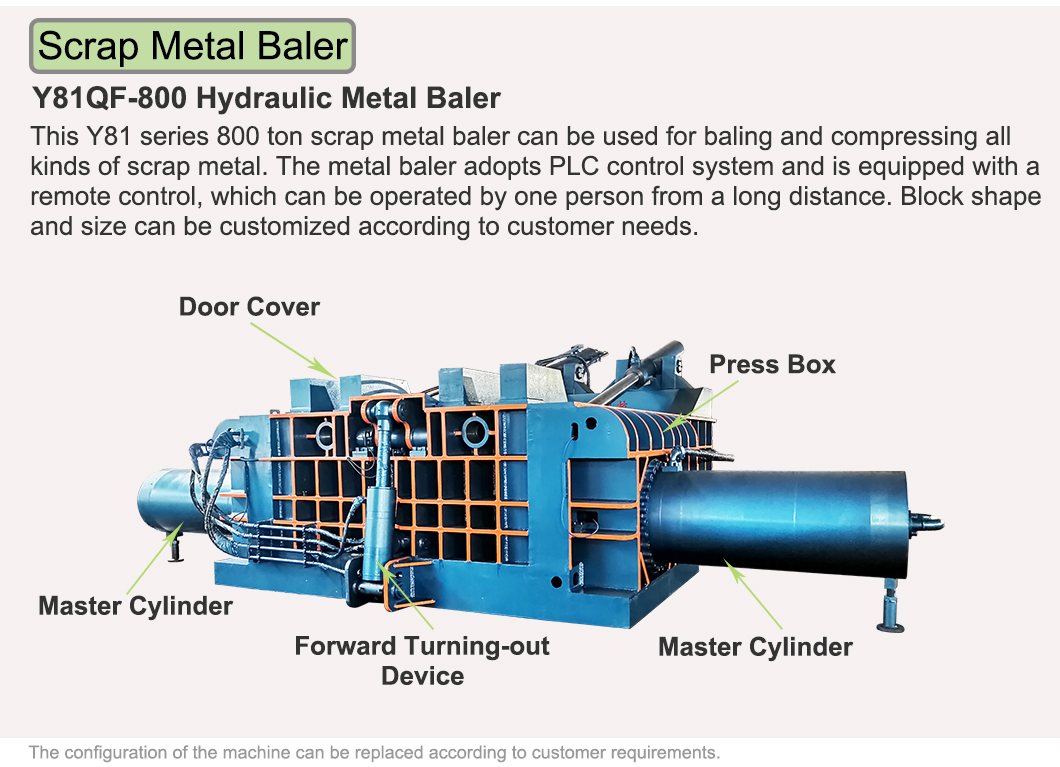

baler-machine-Y81QF-800-1 baler-machine-Y81QF-800-2
