Hydraulic Scrap Car Shell Non-Ferrous Metal Steel Container Shears WS-630

The hydraulic shearing machine has a compact structure, and the body is welded with steel plates into a box-shaped structure, and its mechanical performance is stable. The shear cylinder is connected by a ball hinge, which improves the stability and life of the oil cylinder, adds a front plate guide device, and improves the force condition of the whole machine. It adopts electro-hydraulic control and is easy to operate. It can realize inching and interlocking automatic circulation. It is one of the ideal equipment for the metal recycling industry and the casting shop’s charge processing. The hydraulic shearing machine is suitable for metal recycling processing plants, scrap car dismantling plants, smelting and casting industries. It cuts various section steels and metal structural parts in a cold state and processes them into qualified charge.


  • Hydraulic Scrap Car Shell Non-Ferrous Metal Steel Container Shears WS-630
  • Hydraulic Scrap Car Shell Non-Ferrous Metal Steel Container Shears WS-630
  • Hydraulic Scrap Car Shell Non-Ferrous Metal Steel Container Shears WS-630

Details

Tags

Product Description

The hydraulic shearing machine has a compact structure, and the body is welded with steel plates into a box-shaped structure, and its mechanical performance is stable. The shear cylinder is connected by a ball hinge, which improves the stability and life of the oil cylinder, adds a front plate guide device, and improves the force condition of the whole machine. It adopts electro-hydraulic control and is easy to operate. It can realize inching and interlocking automatic circulation. It is one of the ideal equipment for the metal recycling industry and the casting shop’s charge processing. The hydraulic shearing machine is suitable for metal recycling processing plants, scrap car dismantling plants, smelting and casting industries. It cuts various section steels and metal structural parts in a cold state and processes them into qualified charge.

Features:

①Using hydraulic drive, reliable safety performance and convenient operation;

②Different shearing forces and blade lengths are available for selection;

③The installation does not require foot screws, and can be equipped with diesel engine as power.

Technical Parameters:

Model Max Cutting Force(Ton) Blade Length(mm) Shear Height(mm) Capacity(t/h) Power(KW)
WS-400 400 1400 300/420 4-7 74
WS-500 500 1400 300/420 6-9 90
WS-630 630 1400 300/420 8-15 110
WS-800 800 1600 420/300 12-18 220
WS-1000 1000 1600/2100 420/500 15-25 275

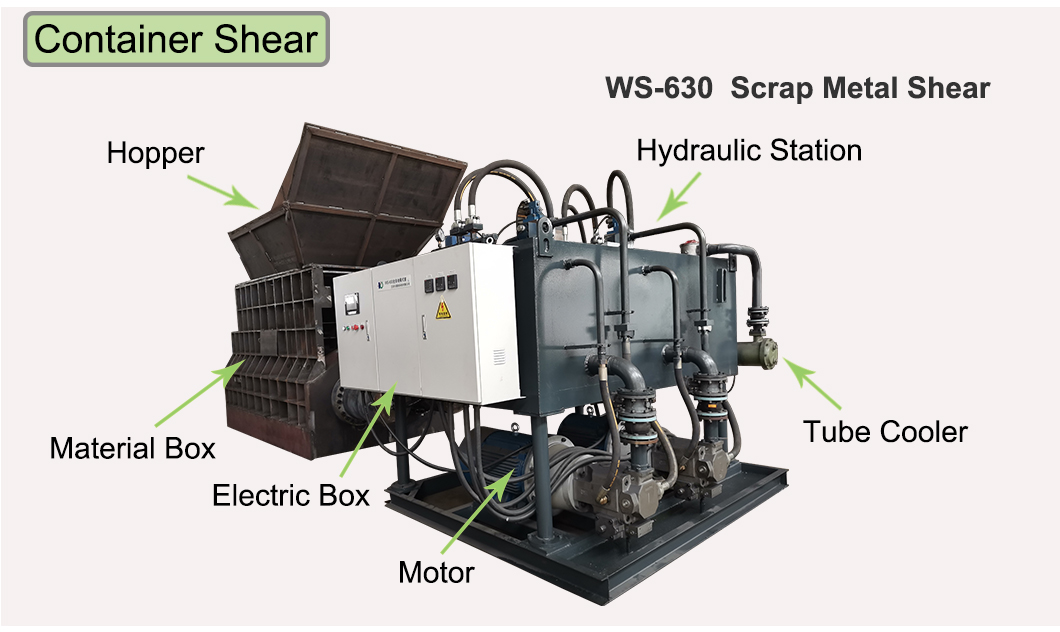

WS-630-shear-detail-1
