Product Description
Hydraulic scrap metal balers are mainly used in metal processing plants, metal products plants, stamping plants, scrap metal recycling plants, etc. Y81 series scrap metal baler adopts hydraulic manual control, which is easy to operate, has high packing efficiency, low investment cost, saves manpower, improves labor efficiency, reduces labor intensity and reduces transportation costs. The working pressure is 63 tons, 125-200-250-280-315-630-1000-1500-2000-2500 tons and other specifications, and can be designed according to user requirements.
Technical Parameters
|
NO. |
Parameter name and content |
||||
|
1 |
Main oil cylinder |
Model |
YG340/220 |
Qty. |
2pc |
|
Normal force |
2500KN |
Stroke |
730mm |
||
|
2 |
Side pressure cylinder |
Model |
YG240/160 |
Qty. |
2pc |
|
Normal force |
1100kN*2 |
Stroke |
2070mm |
||
|
3 |
Door cover cylinder |
Model |
YG240/160 |
Qty. |
1pc |
|
Normal force |
1100kN |
Stroke |
1900mm |
||
|
4 |
Turning bag cylinder |
Model |
YG140/75 |
Qty. |
1pc |
|
Normal force |
120kN |
Stroke |
320mm |
||
|
5 |
Cooler |
Model |
GLC-12m² |
Heat exchange area |
12㎡ |
|
6 |
Cooling Tower |
Model |
LJR-20L |
Power |
0.55kW |
|
7 |
Water circulating pump |
Model |
ISG50-125A |
Power |
1.5kW |
|
Flow |
16.3m³/h |
Qty. |
2900r/min |
||
The parameters in the above table are for reference only.

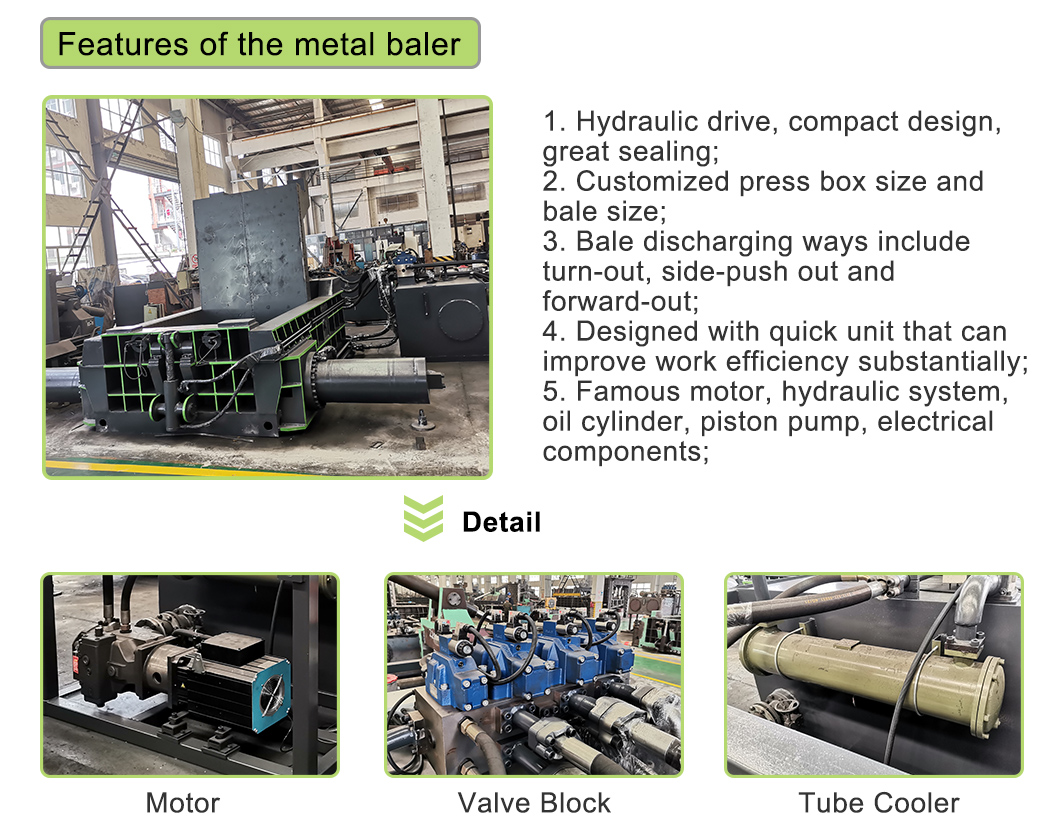

Features of the metal baler
1. Hydraulic drive, compact design, great sealing;
2. Customized press box size and bale size;
3. Bale discharging ways include turn-out, side-push out and forward-out;
4. Designed with quick unit that can improve work efficiency substantially;
5. Famous motor, hydraulic system, oil cylinder, piston pump, electrical components.
