Scrap Metal Container Shear Metal Cutting Machine


  • Scrap Metal Container Shear Metal Cutting Machine
  • Scrap Metal Container Shear Metal Cutting Machine

Details

Tags

Introduction of scrap metal shear

WS series horizontal container shears are suitable for large steel and non-ferrous enterprises, circular economy industrial parks, national urban mining demonstration bases, scrap steel processing and distribution centers, scrap car dismantling and remanufacturing plants and branch plants or temporary scrap yards, etc. The main function of this scrap metal shear is scrap metal cutting and processing.

Technical Parameters

1

Shearing cylinder

Model

YG450/280

Qty.

2 pc

800 Ton

Normal force

4000kNx2

Stroke

850 mm

2

Pressing oil cylinder

Model

YG300/220

Qty.

1 pc

180 Ton

Normal force

1800kN

Stroke

870 mm

3

hydraulic system working pressure

≤26MPa

4

Blade length

1600mm

5

cut height

300mm

6

Host feeding port size

2470x1600mm

7

Hopper upper mouth size*high

(3000×2200)x700mm

The parameters in the above table are for reference only.

Advantages of the container shear

The advantages of the container shear as compared to common guillotine shears can be summarised as follows:

  1. low specific investment and running costs
  2. continual loading of the shear in the feed hopper with simultaneous ejection of the cut scrap – no pre-compaction by lids
  3. Shear control carried out by grabber crane operator no additional operator needed
  4. self-enclosed operation with integrated diesel engine
  5. collection and transport by towing vehicle for transport containers or flat bed trailer

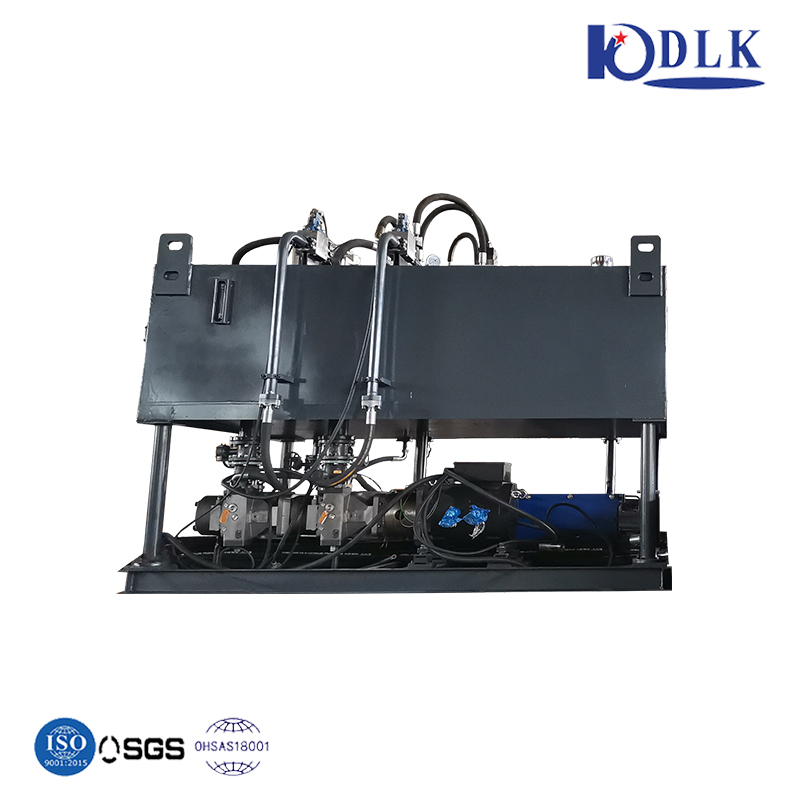

WS-metal-shear-machine-1
