Product Description

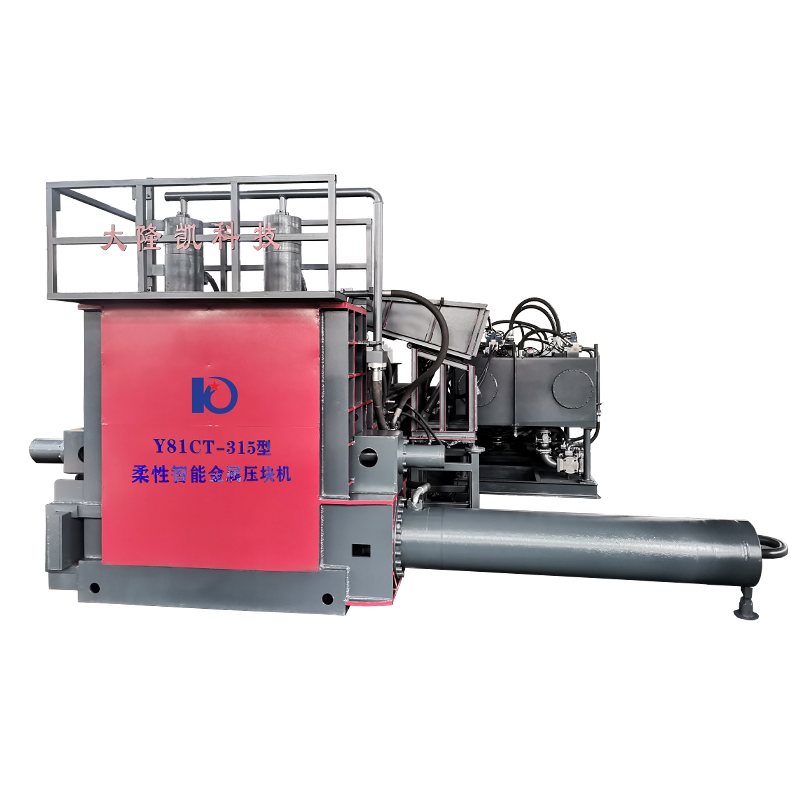

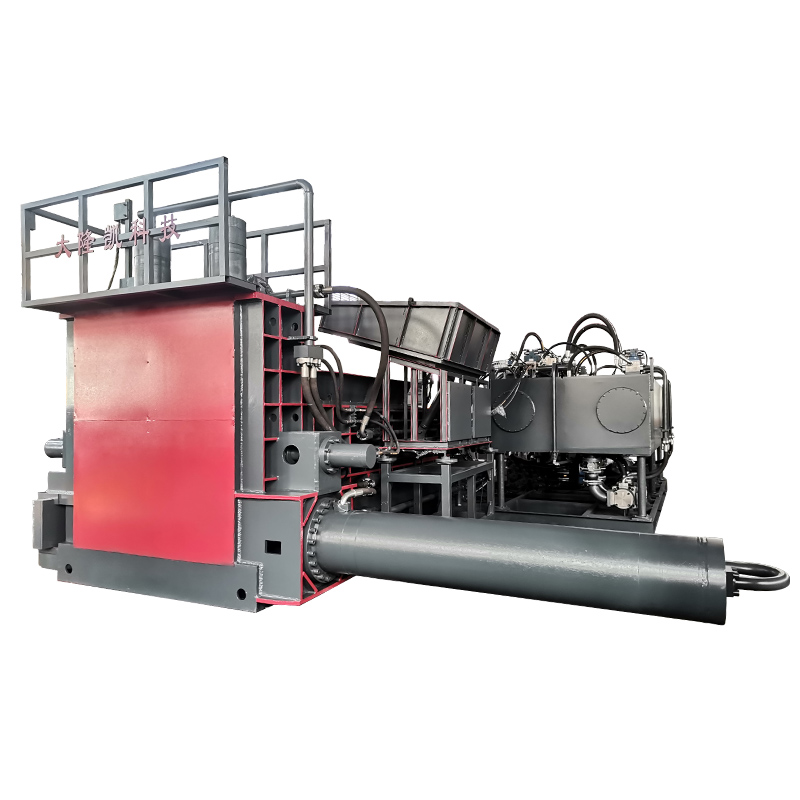

The small scrap metal baler is suitable for scrap metal recycling industries such as waste recycling stations, waste material recycling companies, and steel mills. Pack all kinds of scrap iron sheets, scrap color steel tiles, broken iron pieces, bicycle and motorcycle racks, paint buckets, cans and other light materials into rectangular, hexagonal, octagonal and other shapes, which are convenient for storage and loading. , Transportation and steelmaking in the furnace.
Features :

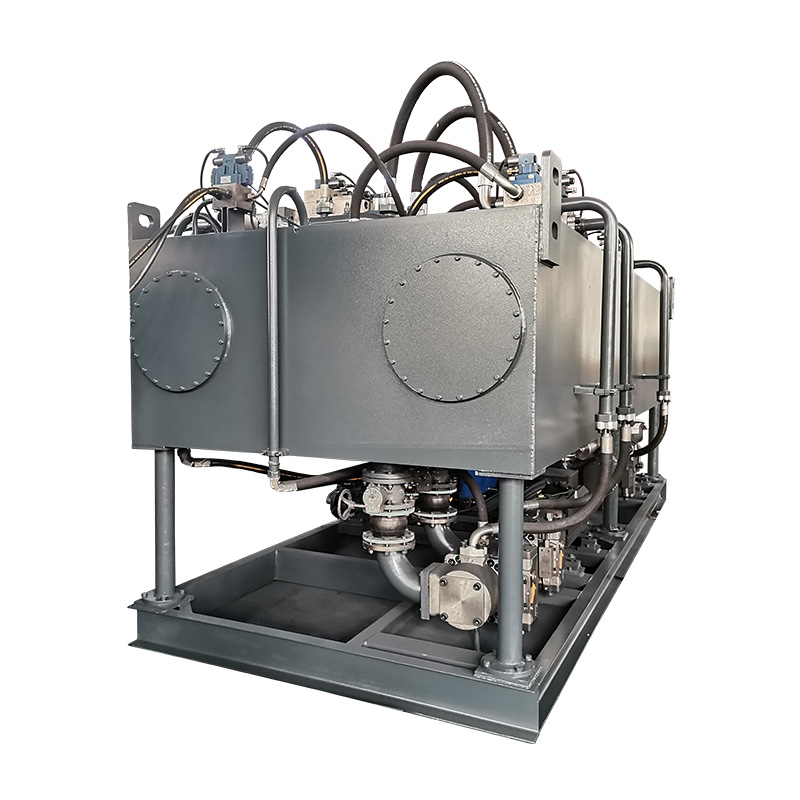

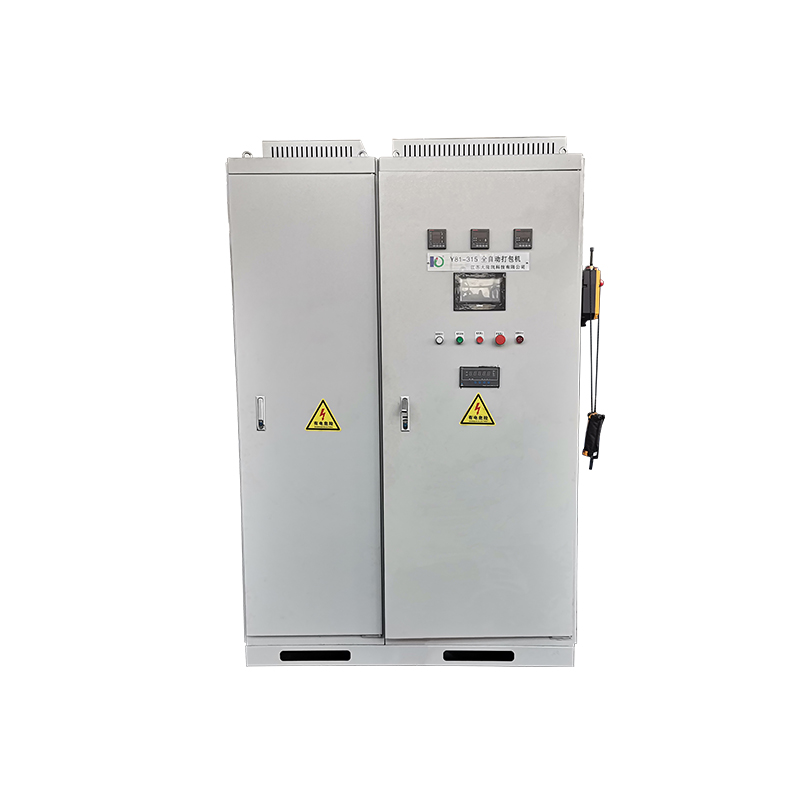

- All machines are hydraulic-driven with alternatives of manual or automatic control .
- Bale-discharging alternative : turn-out , push-out , forward or manual discharging .
- No fang bolts needed for installation ; diesel engine can be used as power when electric power is unavailable .
- There are ten grades of baling force from 63 to 400 tons .The size of baler can be custom made as per customers .
Technical Parameters
|
Model |
Main Cyl.Force(ton) |
Press Box Size(mm) |
Bale Size(mm) |
Bale Weight(kg) |
Power(kw) |
|
Y81F-125 |
125 |
1200*700*600 |
300*300 |
50-70 |
15 |
|
Y81F-160 |
160 |
1600*1000*800 |
400*400 |
100-150 |
22 |
|
Y81F-200 (Double cylinder) |
200 |
1800*1400*800 |
260/300 |
50-100 |
37 or 44 |
|
Y81F-250 (Double cylinder) |
250 |
2000*1750*1000 |
500*500 |
250-450 |
60 |
|
Y81F-250 (Double cylinder) |
250 |
2500*2000*1000 |
500*500/600*600 |
300-500 |
60 |
|
Y81F-280 (Double cylinder) |
280 |
2600*2300*1000 |
500*500/600*600 |
350-550 |
60 |
|
Y81K-315 (Double cylinder) |
315 |
4000*3000*1200 |
600*600/700*700 |
800-1200 |
90 |
The parameters in the above table are for reference only.All machines can be customized.
Application
Y81 series hydraulic metal scrap balers is applicable in steel plants, recycling companies, ferrous &non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.
