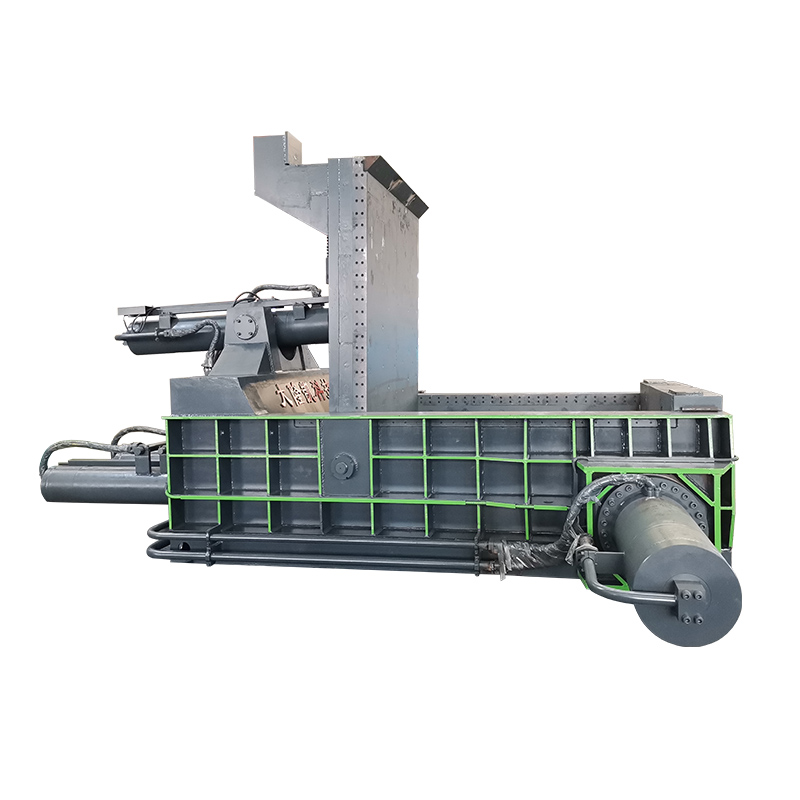

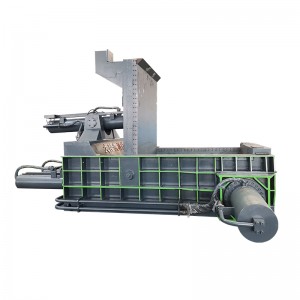

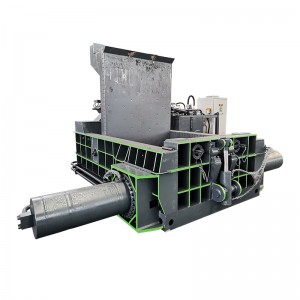

Y81QF-250 Double Main Cylinder Hydraulic Steel Scrap Baler Machine


  • Y81QF-250 Double Main Cylinder Hydraulic Steel Scrap Baler Machine
  • Y81QF-250 Double Main Cylinder Hydraulic Steel Scrap Baler Machine

Details

Tags

Product Description

Y81 series 250-ton scrap metal baler can be used in material regeneration, waste utilization, circular economy and other industries. This series of balers adopts PLC control system, which is easy to operate, fast and efficient. The main cylinder pressure of this machine is 250 tons, the size of the silo is 2500*2000*1000mm, and the size of the bundle can reach 500*500mm. The package block is pushed out of the material box through the front rotary cylinder. The main cylinder pressure and material box size of the baler can be customized according to customer needs.

Technical Parameters

NO.

Parameter name and content

1

Main oil cylinder

Model

YG340/220

Qty.

2pc

Normal force

2500KN

Stroke

730mm

2

Side pressure cylinder

Model

YG240/160

Qty.

2pc

Normal force

1100kN*2

Stroke

2070mm

3

Turning bag cylinder

Model

YG240/160

Qty.

1pc

Normal force

1100kN

Stroke

1900mm

4

Door cover cylinder

Model

YG140/75

Qty.

1pc

Normal force

120kN

Stroke

320mm

5

Cooler

Model

GLC-12m²

Heat exchange area

12

6

Cooling Tower

Model

LJR-20L

Power

0.55kW

7

Water circulating pump

Model

ISG50-125A

Power

1.5kW

Flow

 16.3m³/h

Qty.

2900r/min

The parameters in the above table are for reference only.

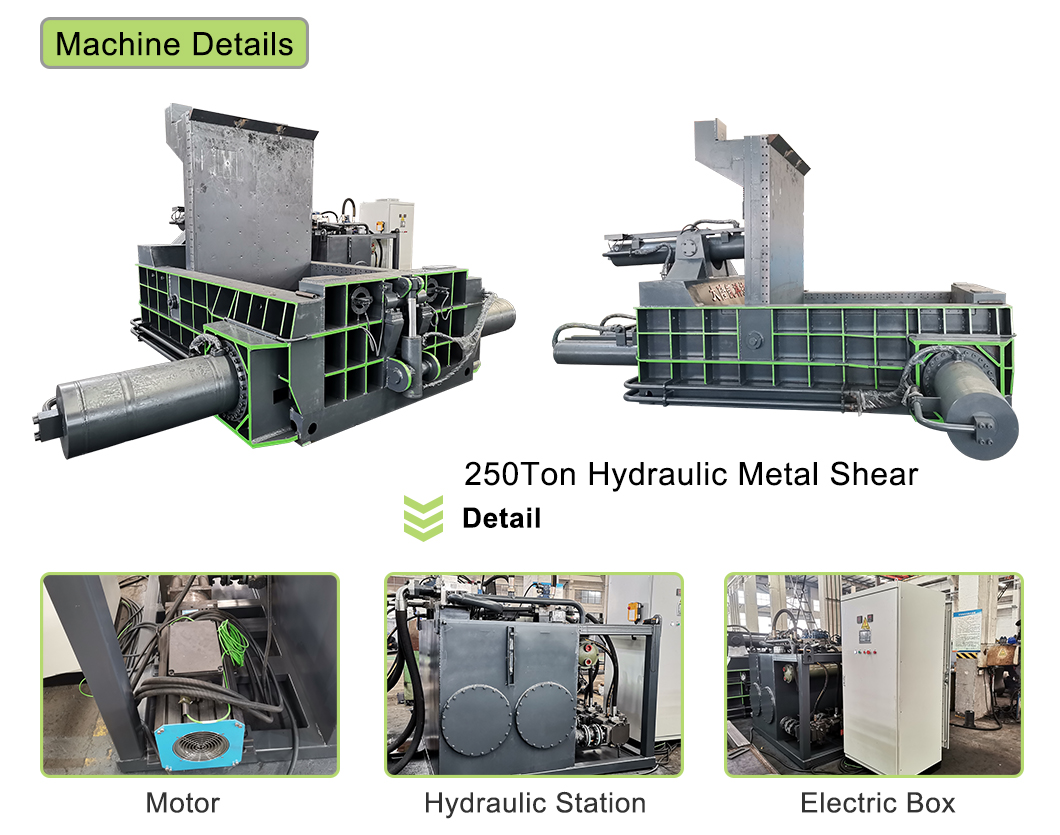

Y81QF-250-metal-baler-detail-1

Application

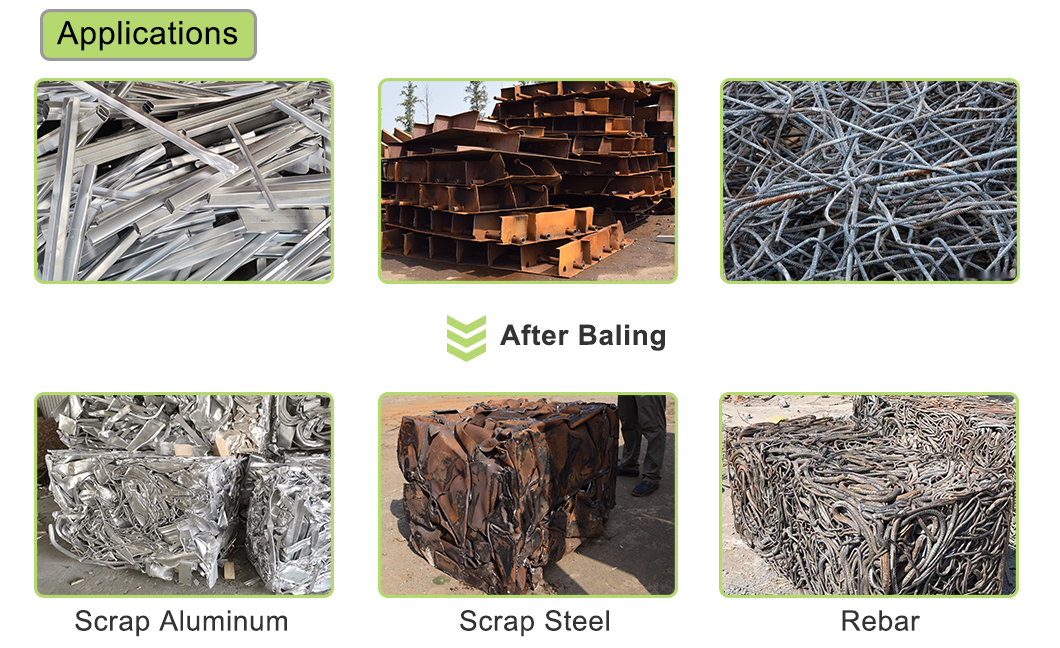

The baler Can Compressing Machinery Scrap Iron Aluminum Metal Baler is used to compress scrap metal(steel, copper, aluminum,stainless steel, etc)into metal block or metal bale. The purpose is to save the transportation cost or reduce the raw material loss when smelting.

Y81QF-250-metal-application-1
